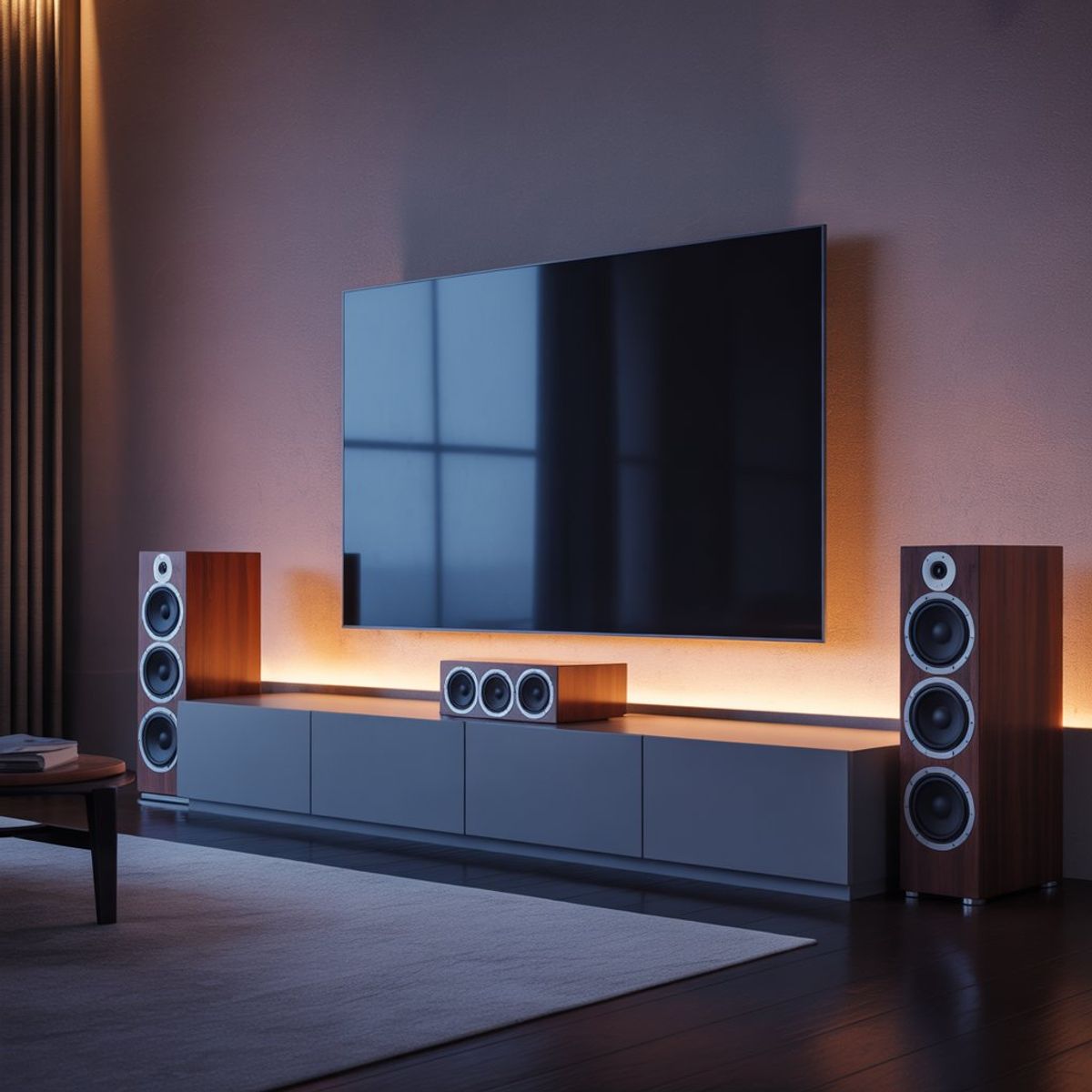

Home Theater Setup: Displays, Sound, and Room Calibration
Background on displays, speakers, and the room
Start with the room, then pick gear that fits. Viewing distance and seating angles influence screen size and speaker placement. As a rule of thumb, many viewers like a screen width that is 1.2 to 1.6 times smaller than their seating distance. For example, at 8 feet from the couch, a 65 to 77 inch TV often feels immersive without strain.
Display types each have strengths. OLED panels deliver deep blacks and excellent contrast, while high brightness LED or QLED sets handle sunlit rooms better. Projectors and ALR screens suit dedicated spaces with light control. Choose a preset like Movie or Filmmaker Mode and disable excessive processing such as motion smoothing or vivid color. For HDR, confirm support for HDR10 at minimum, with Dolby Vision or HDR10 Plus as optional extras.
Sound quality depends on layout and the room itself. A soundbar improves clarity over TV speakers, but a 5.1 or 7.1 system with an AV receiver provides the most separation and upgrade path. Immersive formats like Dolby Atmos and DTS:X add height effects with ceiling speakers or upfiring modules. Place the center speaker at ear height, left and right at roughly 22 to 30 degrees off center, surrounds slightly behind the couch, and the subwoofer near a front wall to start. Soft furnishings, rugs, and curtains help tame reflections and echo.
Trends in connectivity, formats, and automation
HDMI 2.1 features are now common. eARC simplifies lossless audio from smart TV apps to an AV receiver or soundbar, while 4K 120 Hz and VRR benefit gamers using PlayStation, Xbox, or PC. Streaming devices from Apple, Roku, or Nvidia help standardize apps and HDR handling when a TV interface is inconsistent. Multiroom platforms such as Sonos or HEOS link secondary zones without complex wiring.
Room correction is improving. Receivers from Denon and Marantz often ship with Audyssey, Yamaha with YPAO, and Onkyo or Pioneer with Dirac Live on select models. These tools measure the room with a microphone and generate filters that smooth bass and balance channels. Apps for some systems now allow curve editing, crossovers per speaker, and subwoofer time alignment, which reduces boomy spots and thin zones.
Display calibration is more approachable. Many brands expose basic color temperature, gamma, and tone mapping controls in plain language. Some TVs include filmmaker or creator modes that target reference settings out of the box. USB pattern files or test-disc apps can guide quick checks for brightness, contrast, and sharpness, while pro calibration remains an option for perfectionists.
Expert notes on planning and placement
Plan the wiring before unboxing. Use in-wall rated speaker cable if you are hiding runs, and pick high speed certified HDMI for 4K HDR. Long HDMI runs may need active or fiber HDMI to avoid dropouts. Keep power and signal cables separated where possible to limit noise.
Place speakers with intent. Aim the center at ear height and angle it toward seats. Toe-in the front left and right until dialogue and music sound focused at the main seat. For Atmos, ceiling speakers typically land 65 to 100 degrees from the front listening line. If ceiling work is not possible, quality upfiring modules on top of the front speakers can add a sense of height in rooms with low, flat ceilings.
Tame bass methodically. Try the subwoofer crawl: put the sub at the main seat, play a bass sweep, then walk the room with your ears at sub height to find spots where bass sounds smooth. Place the sub there, rerun room correction, and fine tune the crossover at 80 Hz as a default starting point. Two smaller subs placed asymmetrically can smooth bass across multiple seats better than one large unit.
Practical calibration checklist
Displays: select Movie or Filmmaker Mode, set color temperature to Warm or Neutral, lower sharpness to avoid edge halos, and confirm HDR triggers on supported content. If highlights clip, reduce contrast slightly or use a tone mapping control named dynamic contrast or HDR tone mapping set to low or off.
Receivers and soundbars: set speaker sizes to Small unless your fronts are truly full range, choose crossovers around 80 Hz, and enable bass management so the sub handles low frequencies. Level match with the included mic, then verify dialogue clarity with a few scenes. If voices are buried, raise the center channel by 1 to 2 dB or engage a dialogue enhancement mode sparingly.
Seating and reflections: keep ears roughly at tweeter height, avoid placing the couch tight to the back wall, and add soft materials at the first reflection points along side walls. A simple mirror test helps: if you can see the speaker from the main seat by sliding a mirror along the wall, that spot is a candidate for an absorber panel or a thick curtain.
Cables and power: route cables with slack, label both ends, and use a surge protector or power conditioner from a reputable brand. For projectors, avoid cheap long HDMI cords; choose active or fiber HDMI and test with a 4K HDR clip before permanent install.
Common pitfalls and quick fixes
Overprocessing makes pictures look artificial. If skin tones appear waxy or motion looks like a soap opera, disable noise reduction and motion interpolation. If bass booms during music but not movies, check that the sub is not in a corner trap or reduce its gain and rerun correction. If Atmos effects seem faint, verify the content has a true Atmos mix, the receiver input shows Dolby Atmos or DTS:X, and that height speakers are assigned correctly.
Summary
A satisfying home theater balances the room, the gear, and calibration. Pick a display that fits your light conditions, place speakers with intent, and use room correction plus a few manual tweaks to dial in bass and clarity. With clean wiring, eARC for simple audio return, and a short checklist for picture and sound, most living rooms can deliver a cinematic experience without a complex build.
By InfoStreamHub Editorial Team - November 2025
